Ibis Hakkalugi Disc Ultegra Hydro 2018 Technical specs and features
| Brand | Ibis |
| Model | Hakkalugi Disc Ultegra Hydro |
| First production | 2018 |
| Bike category | Cyclo-cross |
| Bike sub-category | Cyclo-cross |
| Bike Pricing | Check price Here ==> |
| Parts And Accessories | Ibis Hakkalugi Disc Ultegra Hydro Parts |
| Available Sizes | - 19 (inches) / 47 (cm) - 20 (inches) / 50 (cm) - 21 (inches) / 53 (cm) - 22 (inches) / 55 (cm) - 23 (inches) / 58 (cm) - 24 (inches) / 61 (cm) |
Wheels And Breaking System
| Bike front tire | Schwalbe Rocket Ron 700 X 33c |
| Bike rear tire | Schwalbe Rocket Ron 700 X 33c |
| Bike wheel size | 700c |
| Brakeset type | Shimano ST-R785 BR-R785 Hydraulic Disc 160/160 |
| Hubs for disc brakes | Speed Tuned Hubs |
| Rims manufacturer | Stan’s Grail Cross Rims |
| Spoke nipples type | Sapim |
| Spoke wheel | Sapim 14/15 Spokes |
Frame and Body Specifications
| Frame materials | Carbon Fiber |
| Frame type | Carbon Fiber Monocoque Frame |
| Handlebar construction | Ibis Flat Top 7075-T6 42 Or 44 Cm |
| Handlebar extender | Not Available |
| Handlebar stem details | Ibis 3D Forged 31.8 Bar and 28.6 Steerer 7075 |
| Headset size | IS41/28.6 IS52/40 Cane Creek 40 Headset |
Gearing Specs
| Bicycle chain | Shimano Ultegra |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 36/46 With Press-Fit BB86 Shimano Ultegra 6800 172.5 Or 175 (millimeters) |
| Gear shift levers | Shimano ST-R785 |
| Rear gear set | Shimano Ultegra CS-6800 11-spd 11-28t |
Ibis Hakkalugi Disc Ultegra Hydro Fork System Data
| Derailleur (Front) | Shimano FD-CX70-B-T Top-Pull 34.9 Band Type 2-spd |
| Derailleur (Rear) | ULTEGRA RD-6800 |
| Fork material | Carbon Fiber |
| Fork type | Thru Axle ENVE CX Disc Fork |
Other Specs of Ibis Hakkalugi Disc Ultegra Hydro
| Component group sets | Shimano Ultegra |
| Available colors | - China White - Gangrene and Black Lung |
| Weight | Not Available |
| Pedals details | None |
| Rear shock absorber | None |
| Saddle seat | CrMo Rails Ibis Custom Saddle |
| Seat post extension | 7075 Ibis 31.6 X 350 L |

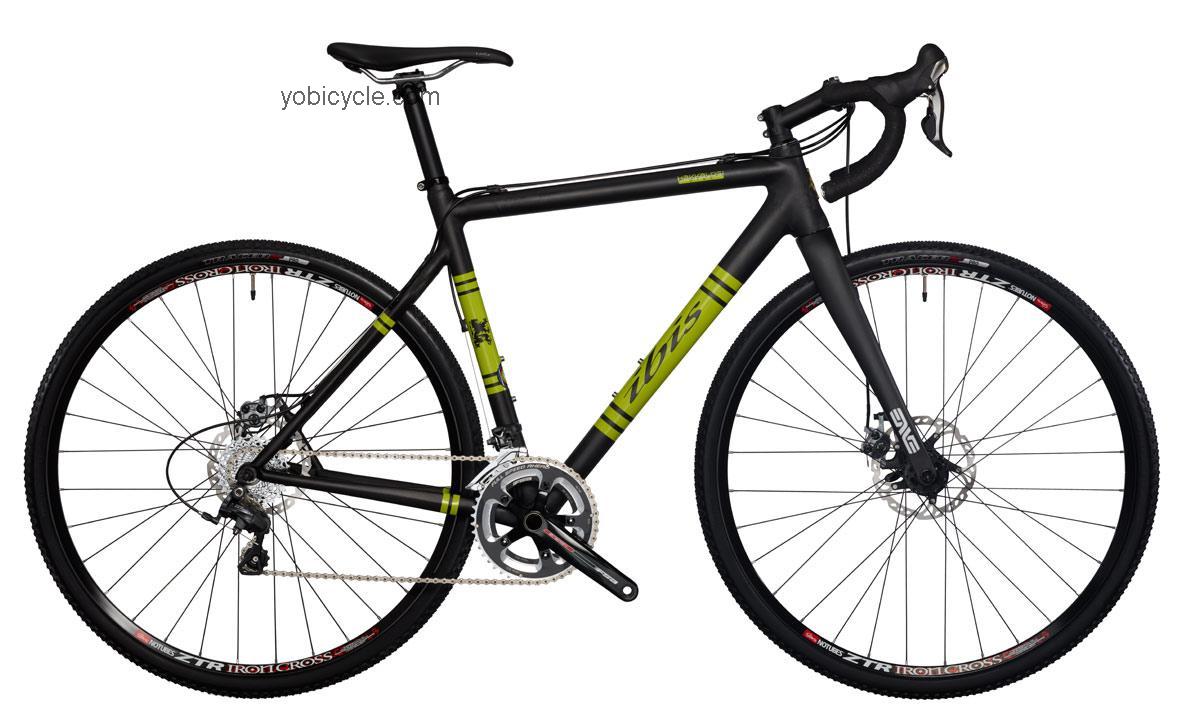

Ibis Hakkalugi Disc Ultegra Hydro picture
Hakkalugi Disc Ultegra Hydro bike comparison
Ibis Hakkalugi Disc Ultegra Hydro Specialized CruX Sport 105
Ibis Hakkalugi Disc Ultegra Hydro Rocky Mountain SOLO CX
Ibis Hakkalugi Disc Ultegra Hydro Giant TCX 0
Ibis Hakkalugi Disc Ultegra Hydro Fuji Altamira CX 1.5
Ibis Hakkalugi Disc Ultegra Hydro bike review
Ibis produced the Hakkalugi Disc Ultegra Hydro bike in 2018 and can be classified as a Cyclo-cross bicycle, this exact model costs in american market arround $3749.
Hakkalugi Disc Ultegra Hydro bike is available in many sizes such as 47 (centimeters), 50 (centimeters), 53 (centimeters), 55 (centimeters), 58 (centimeters) and 61cm (centimeters).
Ibis Cyclo-cross Hakkalugi Disc Ultegra Hydro can be found in a few colors, among these colors China White and Gangrene and Black Lung .
This bike is equiped with Schwalbe Rocket Ron 700 x 33c tires and Sapim 14/15 spokes spoke wheel while the rims are manufactured by Stan’s Grail Cross rims. Ibis equiped this exact model with Shimano ST-R785 BR-R785 Hydraulic Disc 160/160 braking system and Speed Tuned hubs .
To guarantee the comfiest ride Ibis used Carbon fiber material for the frame. Ibis Flat Top 7075-T6 42 or 44 cm high strength material is used on the handlebar of this Hakkalugi Disc Ultegra Hydro to ensure the perfect handling while the stems are made of Ibis 3D Forged 31.8 Bar/28.6 Steerer 7075 .
For the smoothest biking experience Shimano Ultegra 6800 172.5 or 175mm, 36/46, with Press-Fit BB86 is used on this bicycle linked to Shimano Ultegra chain that is easily replaceable as stated by Ibis, the whole system is connected to a high reliability Shimano ST-R785 gear shift levers.
